Rivian R2 SnapPlate Instruction Guide

Insert the T10/T25 bit in the screwdriver handle with the larger T25 bit facing out.

Note: If it's already installed with the T10 bit facing out, grab the bit and pull it out of the handle to flip it around.

This SnapPlate ships with the plate mount and base as separate parts, so jump to the Plate Height Adjustment instructions to attach it at your preferred height before you install the license plate. 👇

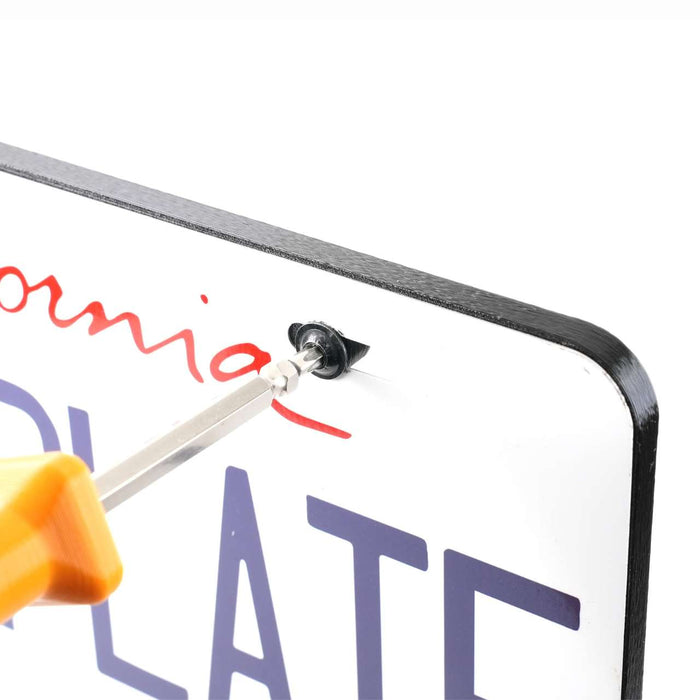

Install your license plate using four of the included black or silver washer-head torx security screws.

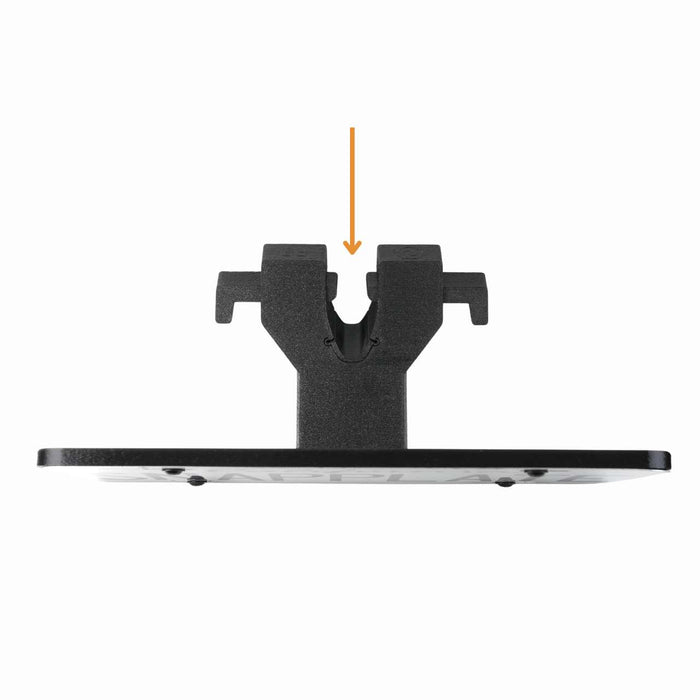

Align the SnapPlate with the top, center vertical bar in the grille.

Firmly push the SnapPlate into the grille.

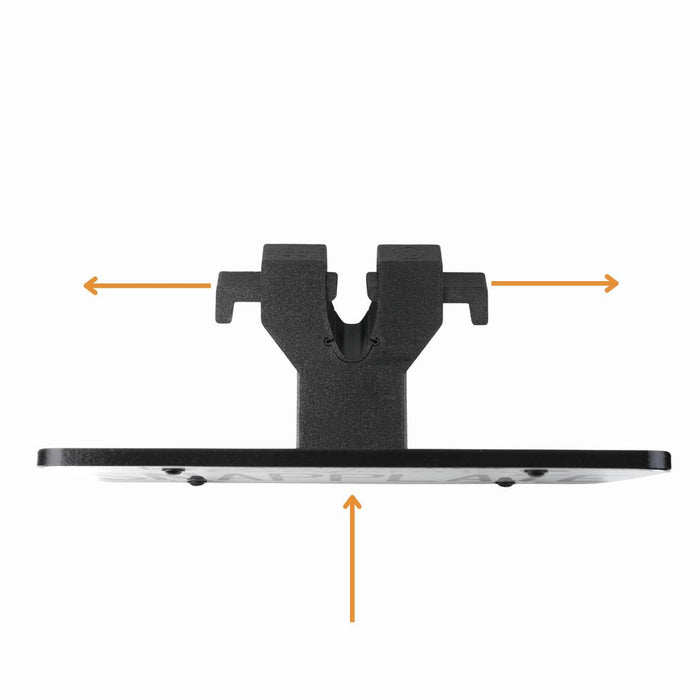

Note: The sliding latches should move open as it slides in and the internal magnets should pull them back closed to grab onto both sides of the grille as it is fully seated.

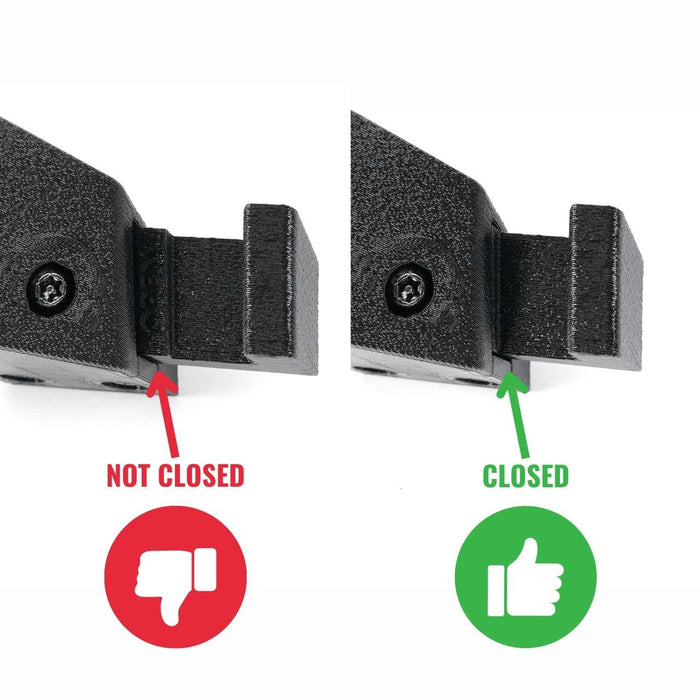

Important! Push both latches towards the center of the grille and check that they are fully closed to secure the SnapPlate.

Note: Depending on how tight the fit is adjusted on the grille, the magnets may fully close the latches on their own or you may need to help them out with a firm push.

You can fine tune the fit on the grille to your preference by following the Grille Depth Adjustment instructions. 👇

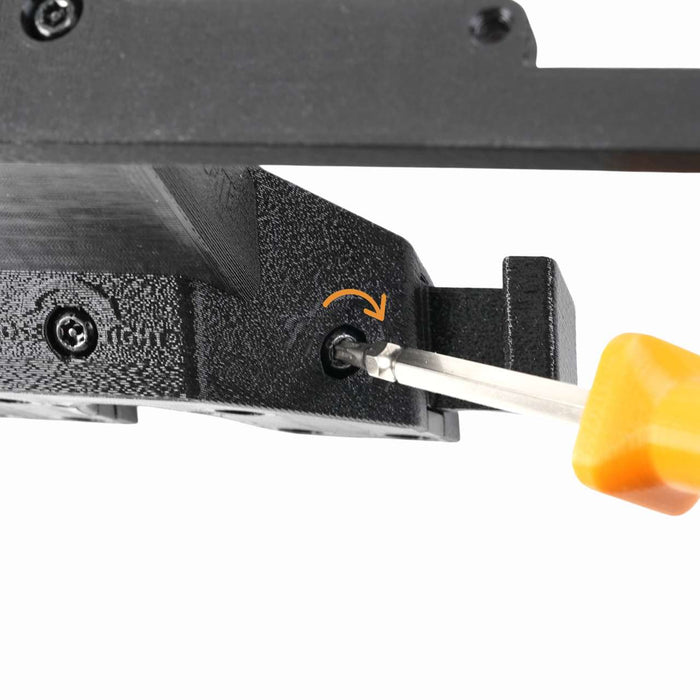

Optionally, turn the anti-theft security screws on both sides clockwise (righty-tighty) ~8 turns until they are snug to lock the SnapPlate to the grille.

To unlock the SnapPlate, turn the security screws on both sides counter clockwise (lefty-loosey) ~8 turns until they are flush with the body of the SnapPlate.

Note: The security screws don't need to be fully removed - just loosen them until they're flush with the body of the SnapPlate

To remove the SnapPlate, use both hands to pull the latches away from the center of the grille while you pull the SnapPlate out of the grille.

Important! Don't forget to remove SnapPlates for automated car washes. Most touchless washes are fine, but better to be on the safe side!

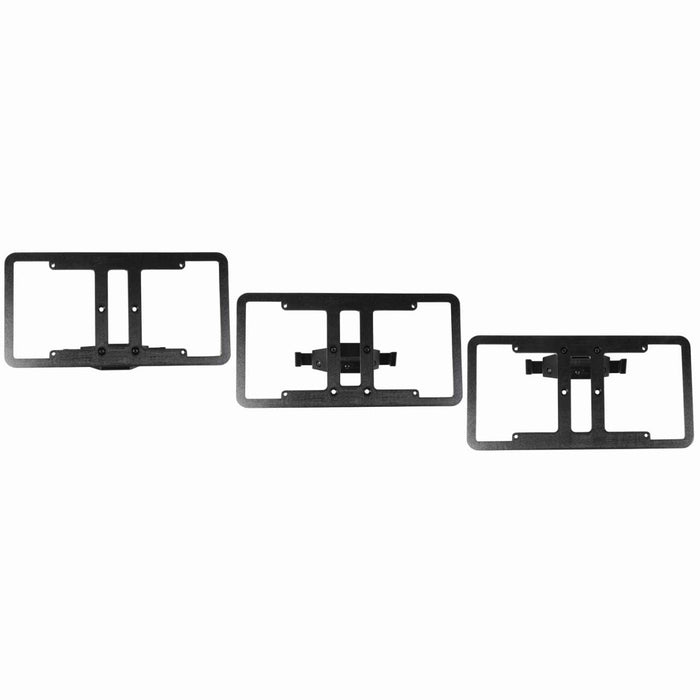

Plate mounts are adjustable into 3 possible positions.

We recommend high for the best aesthetics or center to avoid the 360 camera. Low looks good from the front, but out of place from the side.

Important! The plate mount blocks the grille depth adjustment screw in the center and low positions, so make sure you adjust that first following the Grille Depth Adjustment instructions👇 if you're going lower!

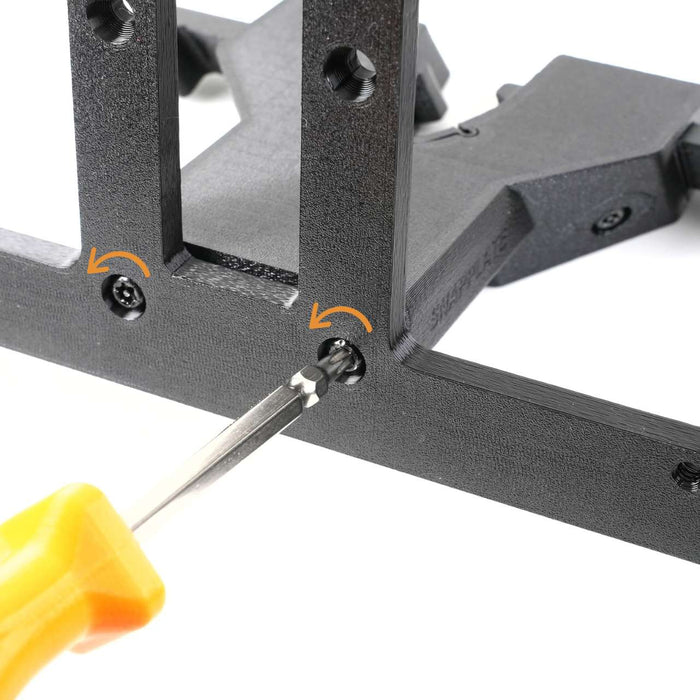

If the plate mount is currently attached to the base, remove the two screws holding the plate mount to the body.

If the plate mount is not currently attached to the base, retrieve the two longest screws from the hardware kit.

For installation in the high position go to Step 3.
For installation in the center position go to Step 4.
For installation in the low position go to Step 5.

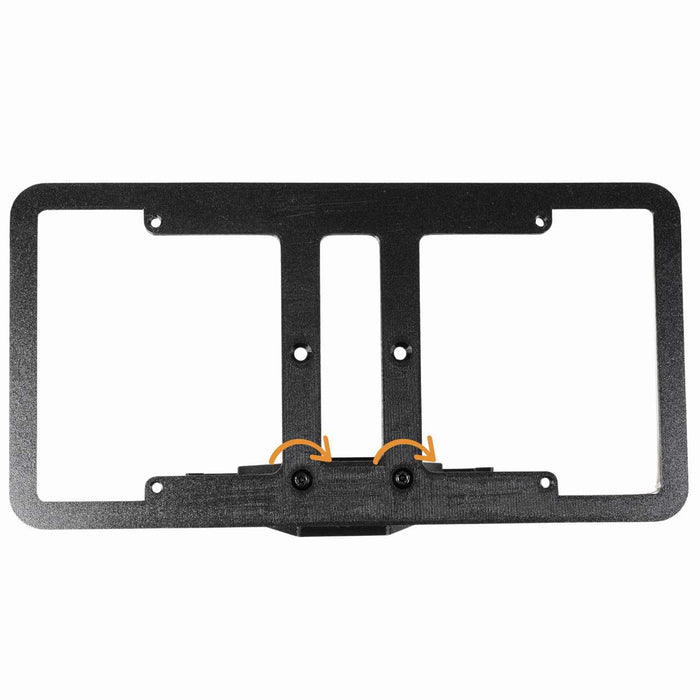

Attach the base to the plate mount with the screws in the bottom holes.

Once it's attached, return to Installation instructions Step 2. ☝️

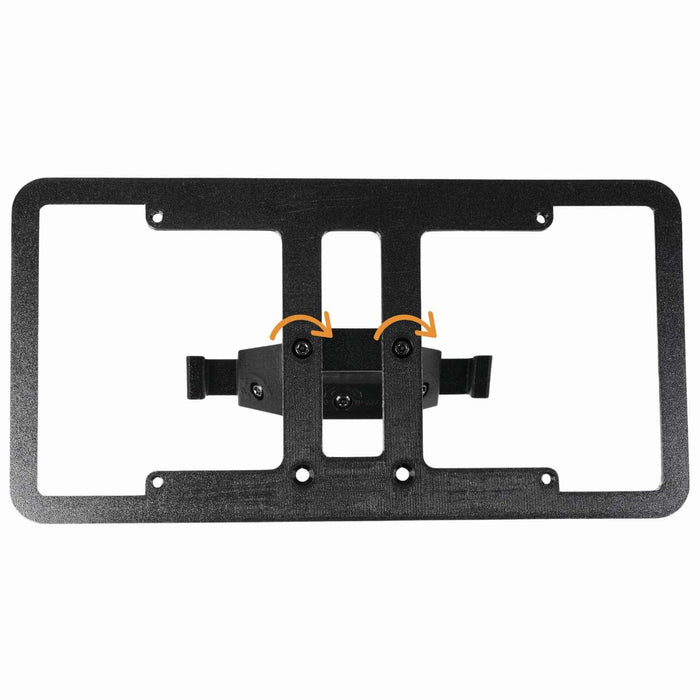

Attach the base to the plate mount with the screws in the center holes.

Once it's attached, return to Installation instructions Step 2. ☝️

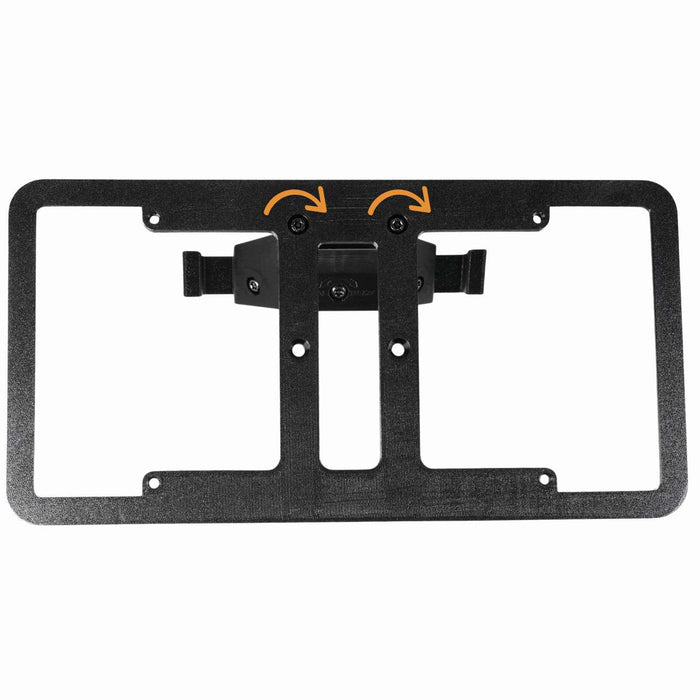

Rotate the plate mount 180 degrees to attach the base to the plate mount with the screws in the top holes.

Once it's attached, return to Installation instructions Step 2. ☝️

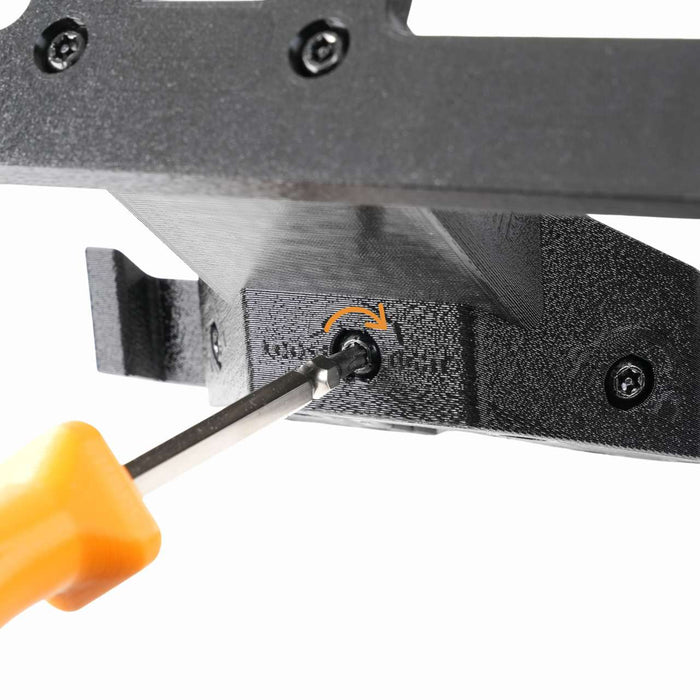

To tighten the fit on the grille, turn the adjustment screw clockwise (righty-tighty) ~2 turns until it is snug.

To loosen the fit on the grille, turn the adjustment screw counter clockwise (lefty-loosey) ~2 turns.

Note: The screw doesn't need to be fully removed. Just loosen it until it's flush with the body.
